Spike Hammer

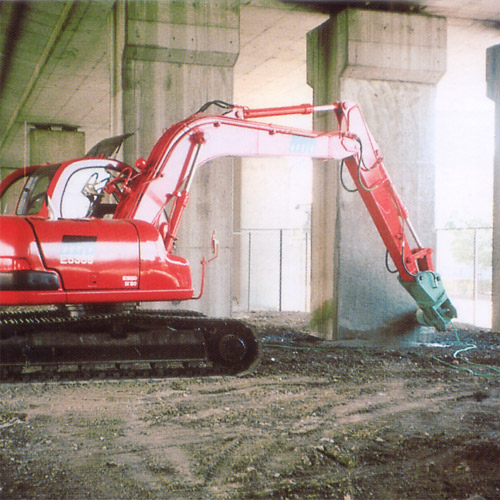

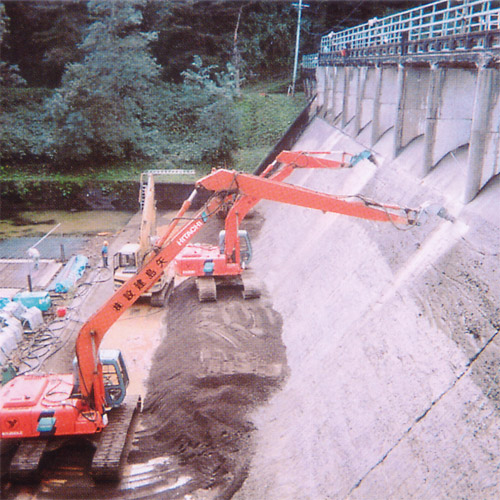

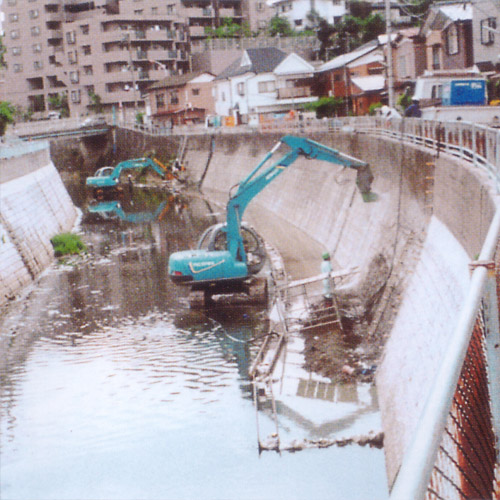

Heavy machinery mounted type: Spike hammer is used by installing on hydraulic excavator. It shaves shallow at high speed, and deep at low speed.
Arm pressing force: Concrete pressing force of heavy machinery arm moves with a light push, unlike breakers.
Hand-held type: KA-70 and RT-68 are hand-held type, but efficient if installed on light/heavy machinery or forklift.

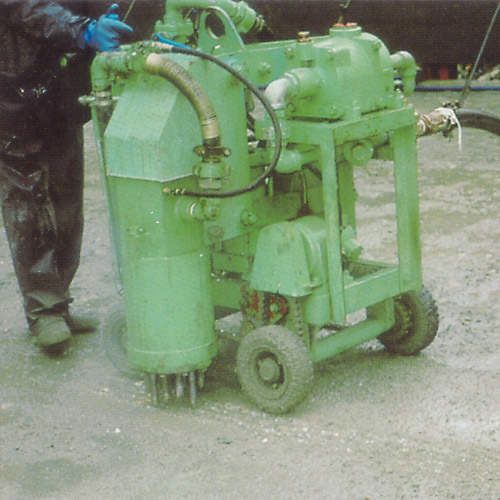

Dust collecting mechanism: KA-200 and KA-100 can absorb dust during grinding from the center of hammer when connected to a separate dust collector (precipitator) and improve the work environment. It can also inject water.

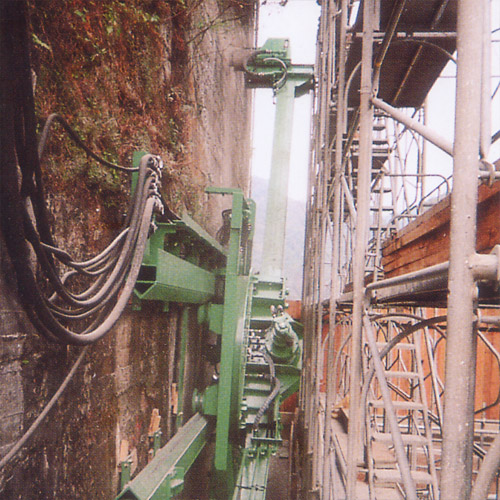

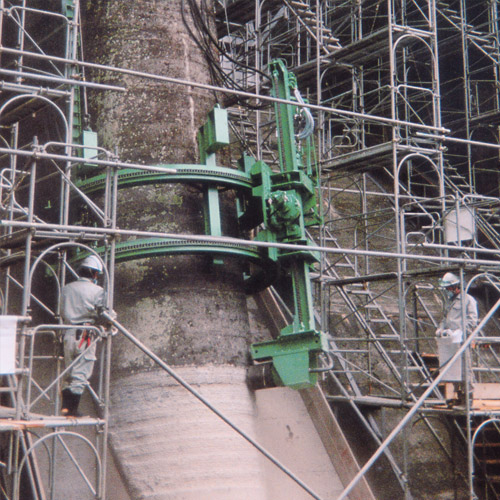

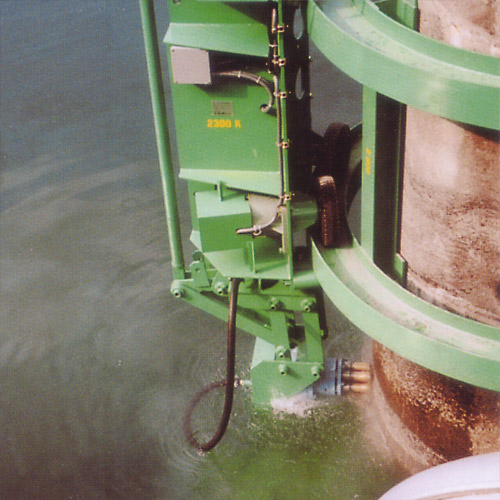

Production of exclusive stand: Spike hammer can be installed on hydraulic excavator, but exclusive stand that meets the purpose is also produced.

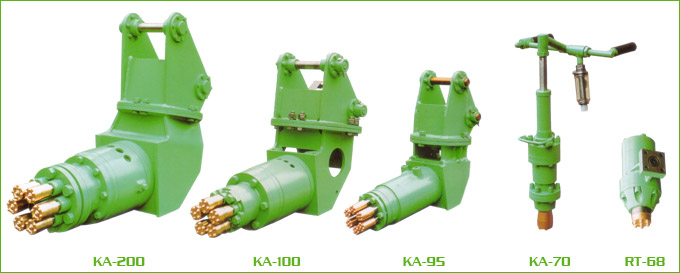

Model			KA-200	KA-100	KA-95	KA-70	RT-68
Heavy machinery installation (m³)			Over 0.25	0.1～0..2	0.07	Hand-held type	Hand-held type
Hammer weight (kg)			300	140	66	34	25
Bracket weight (kg)			160	150	70	-	-
Number of strikes (blow/min)			1,600	1,600	2,000	2,100	2,100
Air consumption (Nm/min³)			7	5	3	1.4	1.4
Working air pressure (MPa)			0.5	0.5	0.5	0.5	0.5
Compressor (*)			100HP	75HP	50HP	30HP	30HP
Bit diameter X number of bit			70Φ X 6	60Φ X 5	40Φ X 6	70Φ X 1	60Φ X 1
ビット束径　mm			Φ234	Φ170	Φ134	Φ70	Φ60
Capability (m²/h)	Shaving depth	5mm	70	38	23	6	6
		10mm	43	19	11	3	-
		20mm			5.6	-	-
		30mm	11	5..5	3.5	-	-
		60mm	4.3	2.5	1.2	-	-
Dust collecting mechanism			Yes	Yes	Water injection	-	-

(*) Please note that compressors need to be prepared by the customers.
