Kurita Sakuganki K.K.
KURITA

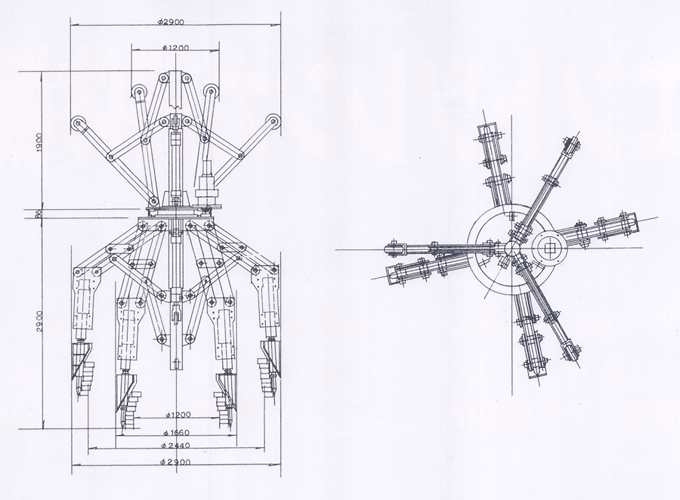

Chimney brick dismantling machine
Specification
| Weight | 3,000kg |
|---|---|
| Overall length | 4,886mm |
| セリ矢min diameter | Φ1,660mm |
| セリ矢max diameter | Φ2,900mm |
| Hydraulic breaker model | TNB-3型 4台 |
| Oil pressure | 140kg/cm² |
| Oil content | 105ℓ /min |
|---|---|
| Outrigger min diameter | Φ1,200mm |
| Outrigger max diameter | Φ1,660mm |
| Outrigger leg | 3 |
| Angle of traverse | 90° |
